BTMETER BT-6688F Digital Insulation Resistance Tester, Voltage Tester Auto Range Megohmmeter

2 sold in last 8 hours
BTMETER
BT-6688F
Out of stock Many in stock
$52.99

PRODUCT DESCRIPTION

♦【High Precision Megohmmeter & Voltmeter】Voltage range:250V/500V/ 1000V/2500V; AC voltage: 1~750V; Resistance range: 1MΩ~20GΩ; Accuracy: 1MΩ~200MΩ: ± ( 3.0%+5...

Size Guide
$52.99

customers are viewing this product
BTMETER BT-6688F Digital Insulation Resistance Tester, Voltage Tester Auto Range Megohmmeter

PRODUCT DESCRIPTION

♦【High Precision Megohmmeter & Voltmeter】Voltage range:250V/500V/ 1000V/2500V; AC voltage: 1~750V; Resistance range: 1MΩ~20GΩ; Accuracy: 1MΩ~200MΩ: ± ( 3.0%+5 )/ 200MΩ~10GΩ: ± ( 5.0%+5 )/ 10GΩ~200GΩ: ± ( 10.0%+5 ); Frequency Range:40Hz~400Hz.

【Cool Insulation Tester】BTMETER BT-6688F Insulation Tester come with 1999 count LCD display, Data hold, Back-light, Low battery display.It has the characteristics of simpler operation and more accurate measurement,which includes the functions what you need.

【Wide Range Of Applications】BTMETER BT-6688F can be used to measure resistance, AC voltage, the highest measurement range of resistance can reach 20GΩ.Suitable for the measurement of transformers, motors, cables, electrical appliances, and the maintenance and repair of electrical appliances.

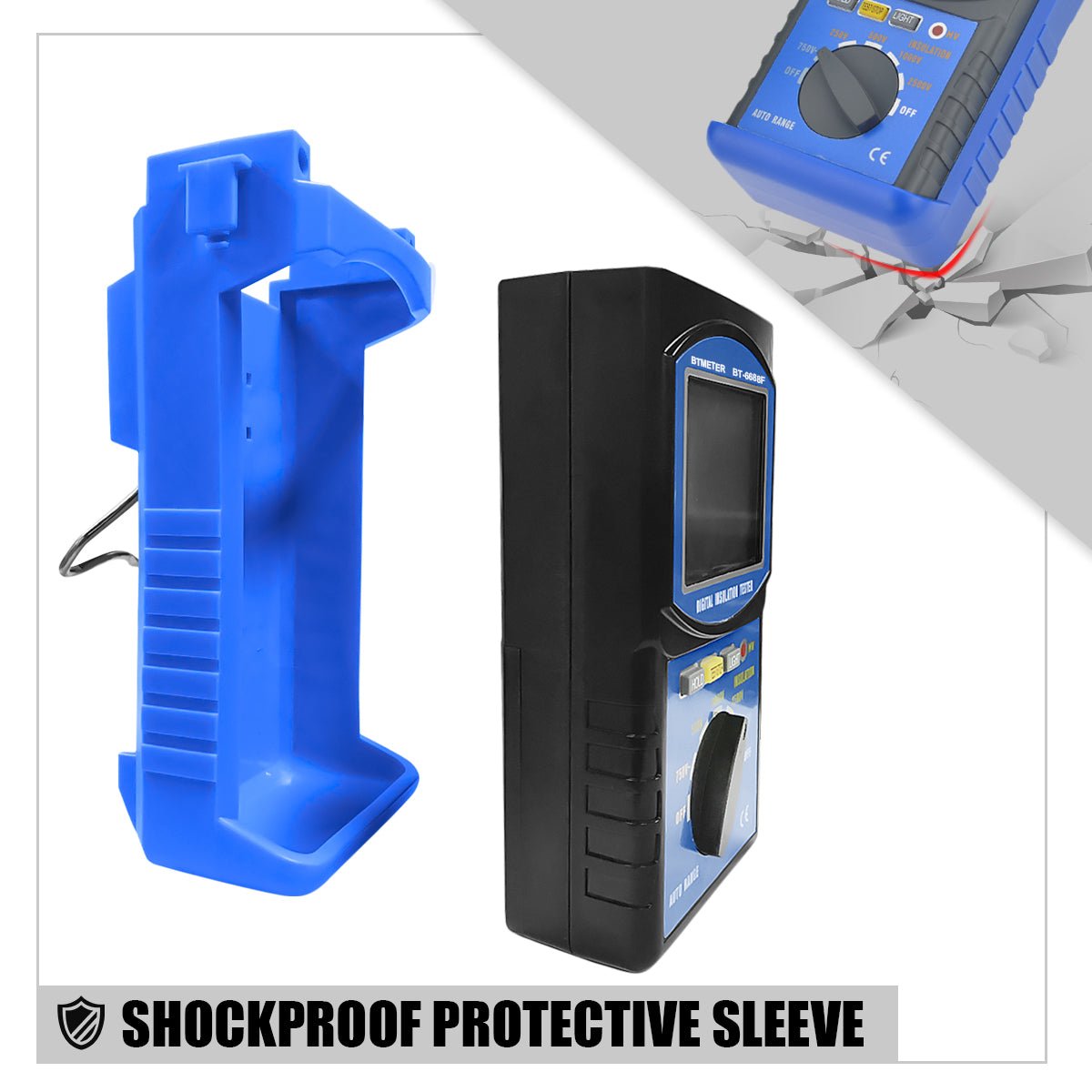

【Reliable Design】BT-6688F come with double insulation design, the rubber sheath is dust-proof, shock-proof and moisture-proof. The back of the sheath comes with a metal bracket, can free your Hands.

【Quality Assurance】BTMETER is provide 2 two years warranty and life-time technical support.If you have any problem of BT-6688F, please feel free to contact us.



BASIC FUNCTION

✔ Data Hold

✔ Back Light

✔ Auto Ranging

✔ Low Battery Indication

✔ HV Red Indication Lamp Light



SPECIFICATION

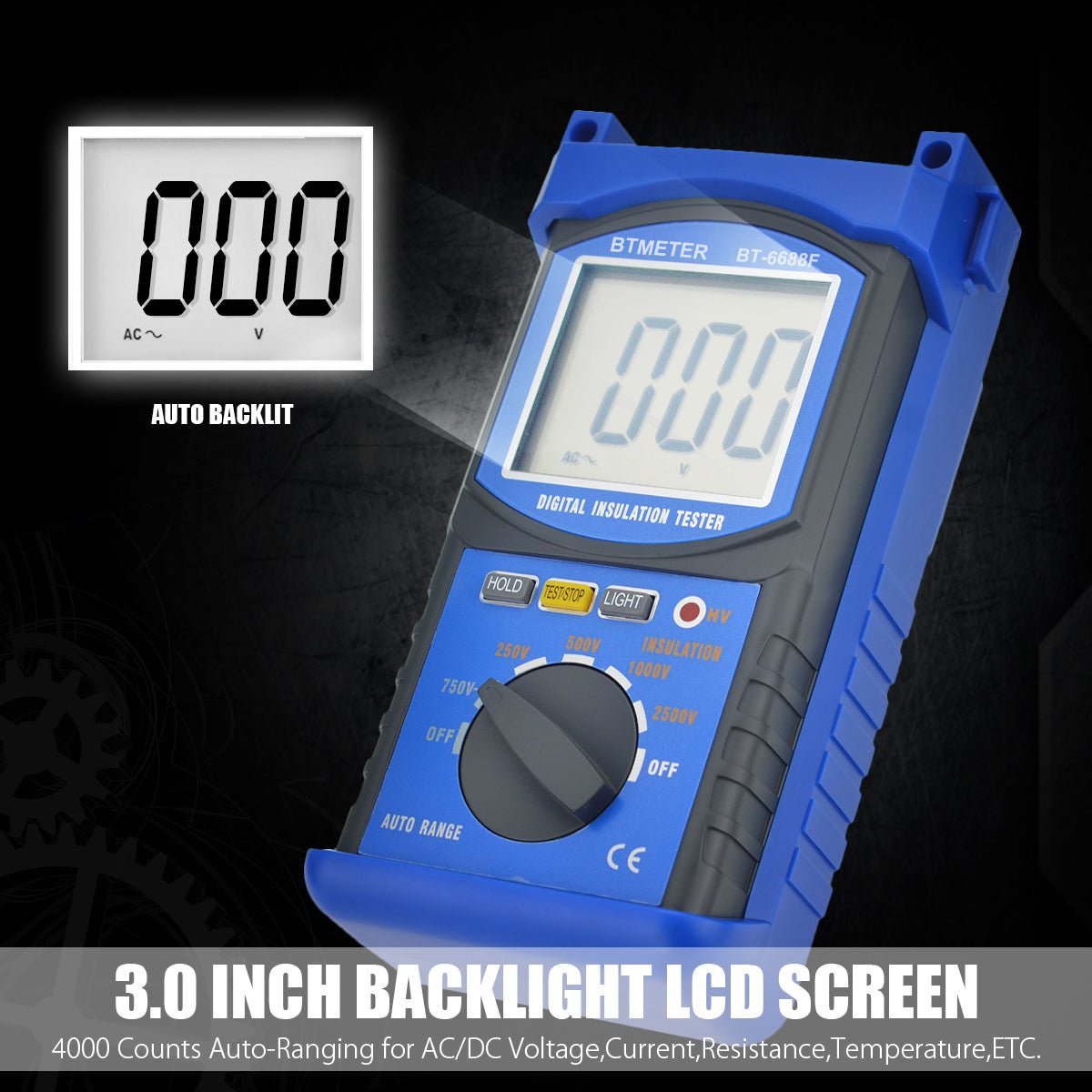

Display 1999 Counts
AC Voltage 1V~750V
Insulation Resistance 1MΩ~20GΩ
Accuracy

1MΩ~200MΩ: ±(3.0% of rdg+5 digits)

200MΩ~10GΩ: ±(5.0% of rdg+5 digits)

10GΩ~20GΩ: ±(10.0% of rdg+5 digits)

Testing Voltage 250V/500V/1000V/2500V
Accuracy ±(2.0% of rdg+5 digits)

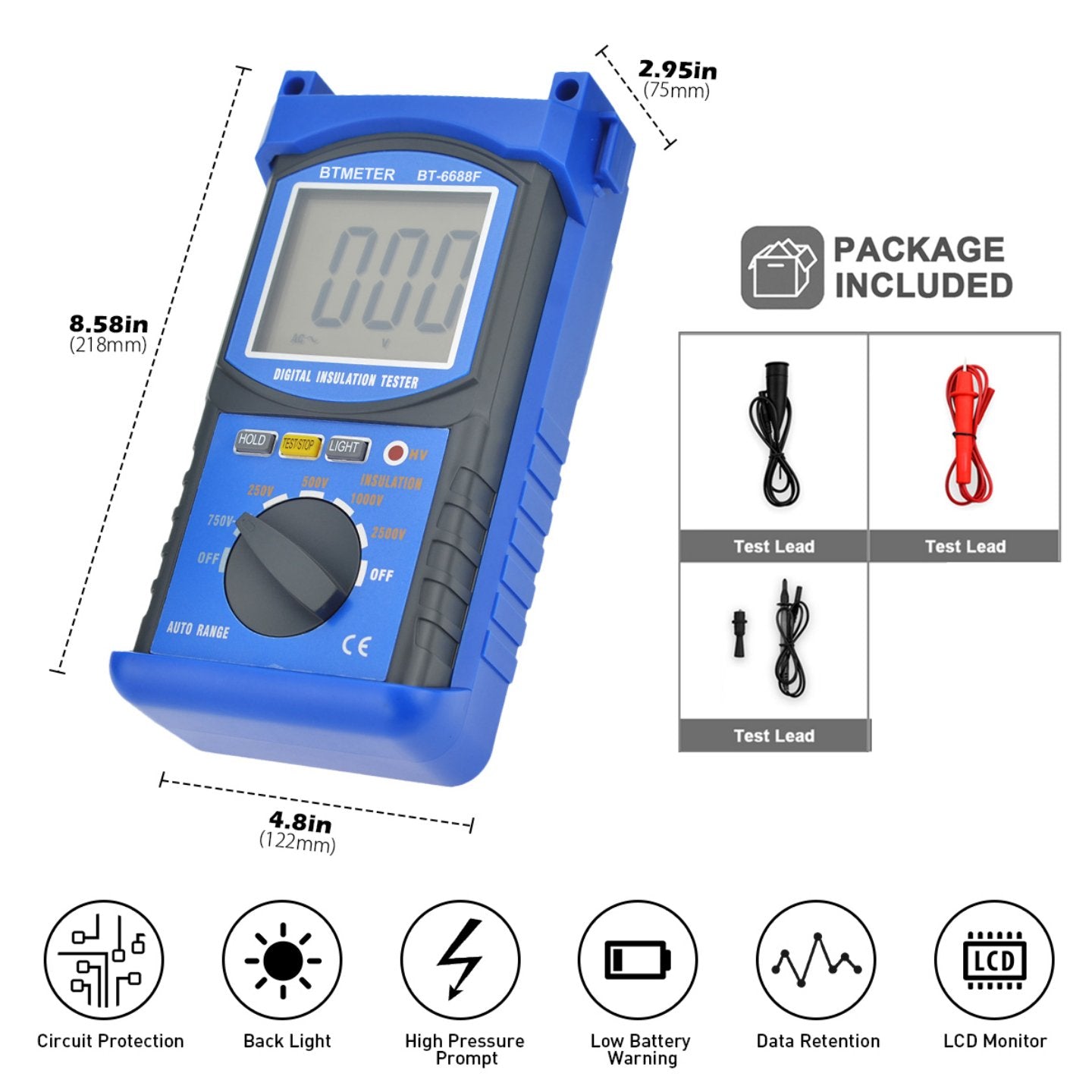

PACKAGE INCLUDED

2*Test Lead

1*User Manual

1*Shoulder Strap

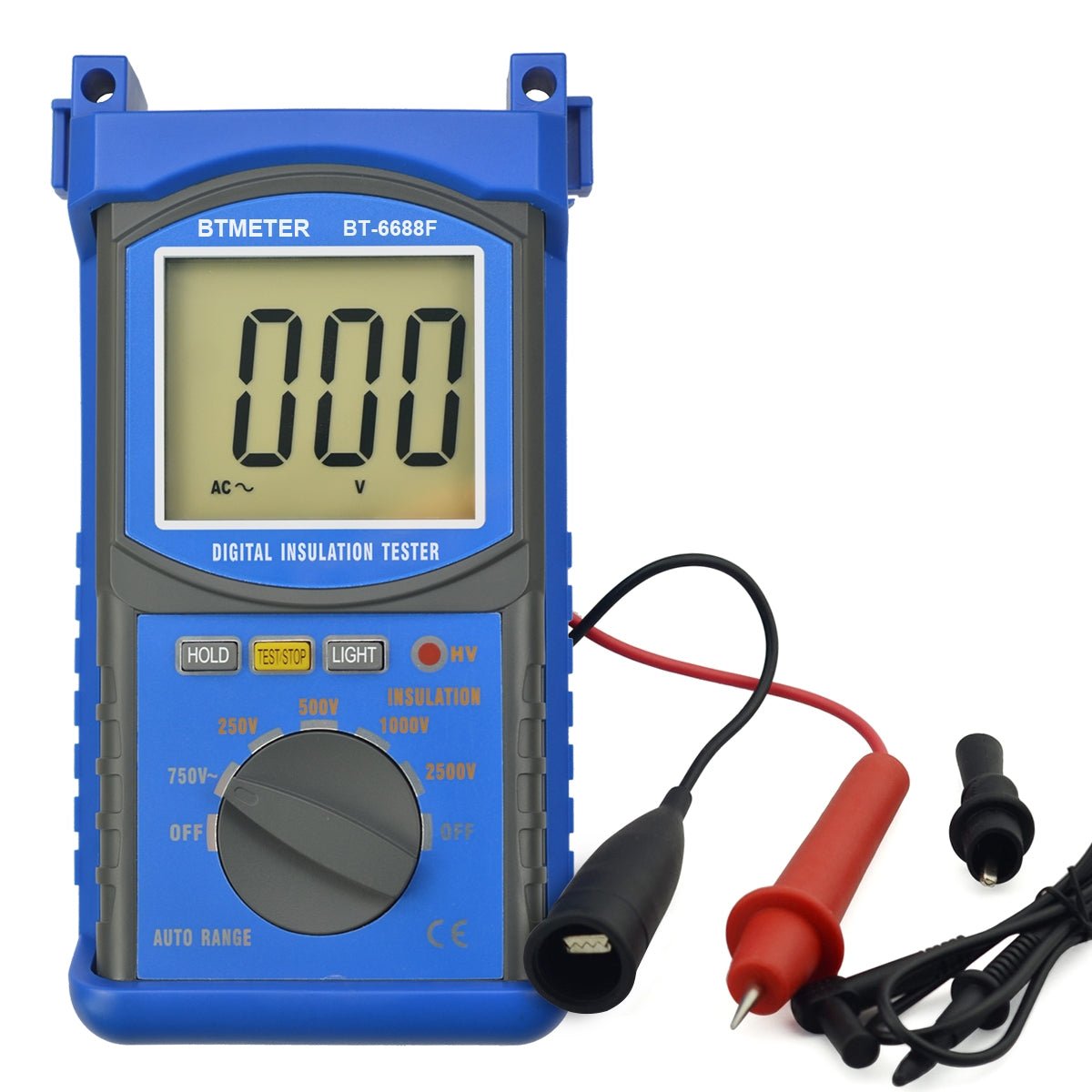

1*BT-6688F Digital Insulation Resistance Tester

Read More
Read Less

7 Days free refund, 15 Days free replace, 365 Days Warranty, Lifetime Tech-support.
