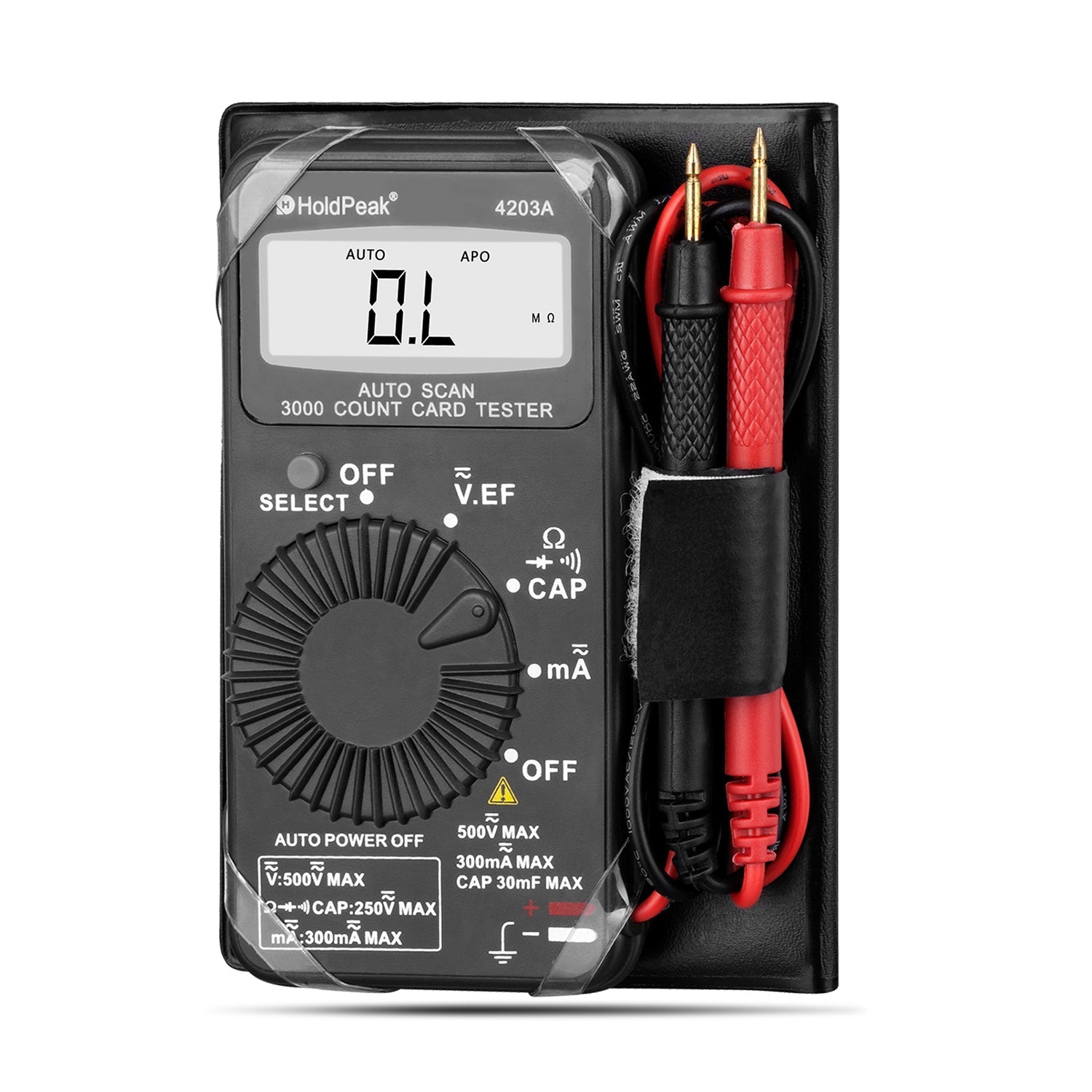

BTMETER BT-4203 Mini Digital Multimeter Card Type Auto Range

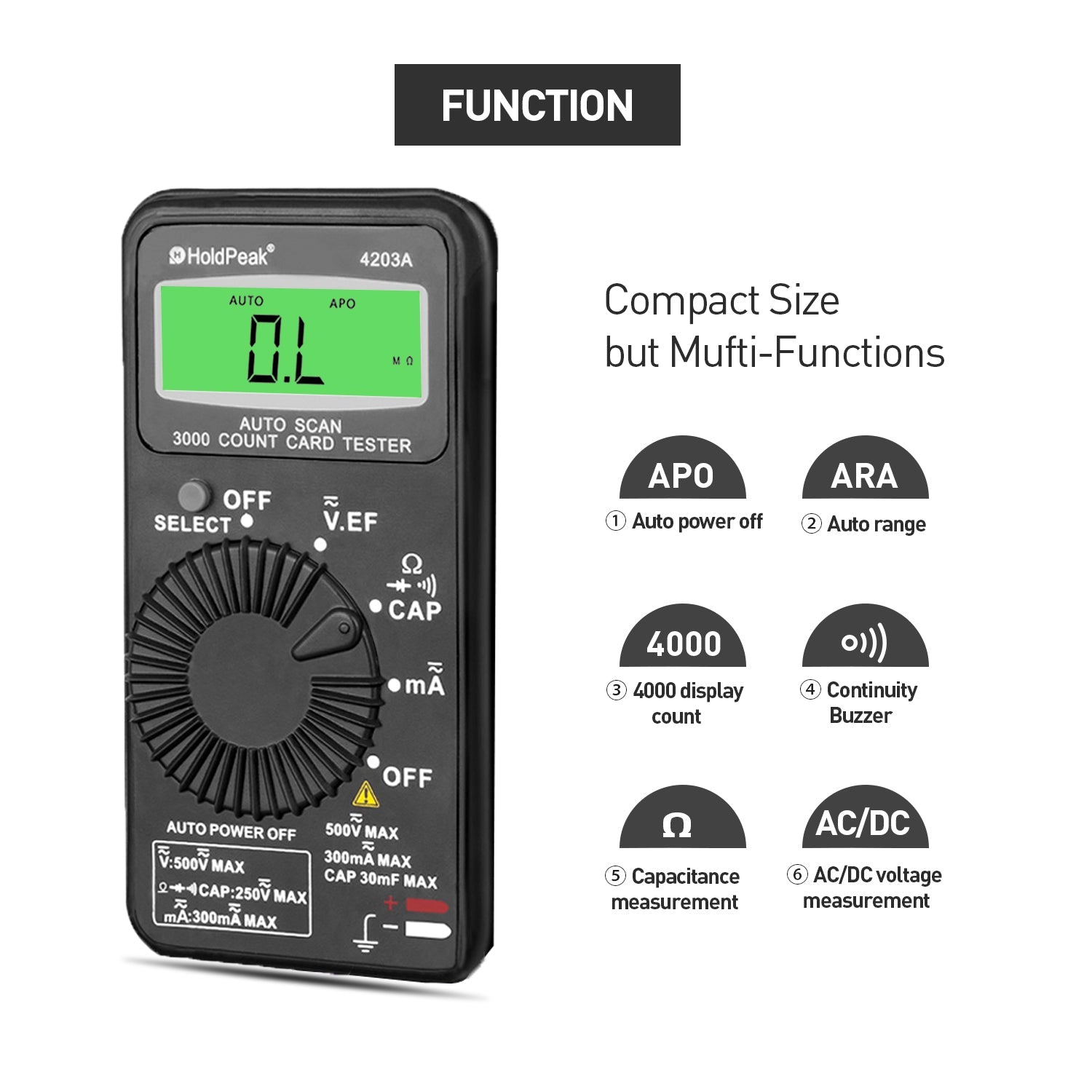

FUNCTIONS
♦ Display: reading of 2999
♦ Zero Adjustment: Automatic.
♦ DC Voltage: 3V/30V/300V/500V±(1.0%of rdg+7digits)
♦ AC Voltage: 3V/30V/300V/500V±(1.0%of rdg+10digits)
...
FUNCTIONS
♦ Display: reading of 2999
♦ Zero Adjustment: Automatic.
♦ DC Voltage: 3V/30V/300V/500V±(1.0%of rdg+7digits)
♦ AC Voltage: 3V/30V/300V/500V±(1.0%of rdg+10digits)
♦ DC/AC Current: 30mA/300mA±(1.5%of rdg+10digits)
♦ Resistance: 3000Ω/3kΩ/30kΩ/300kΩ/3MΩ/30MΩ±(1.2%of rdg+20digits)
♦ Capacitance: 3nF/30nF/300nF/3μF/30μF/300μF/3mF/30mF±(2.5%of rdg+25digits)
♦ Range Control: Auto range and scan function.
♦ Polarity: Automatic negative polarity indication.
♦ Over Range Indication: "OL" display. (Except 30mA).
♦ Low Battery: The product is display when the battery voltage is below 2.4V.
♦ Safety Standards: The meter is up to the standards of IEC1010 Double Insulation, Pollution.

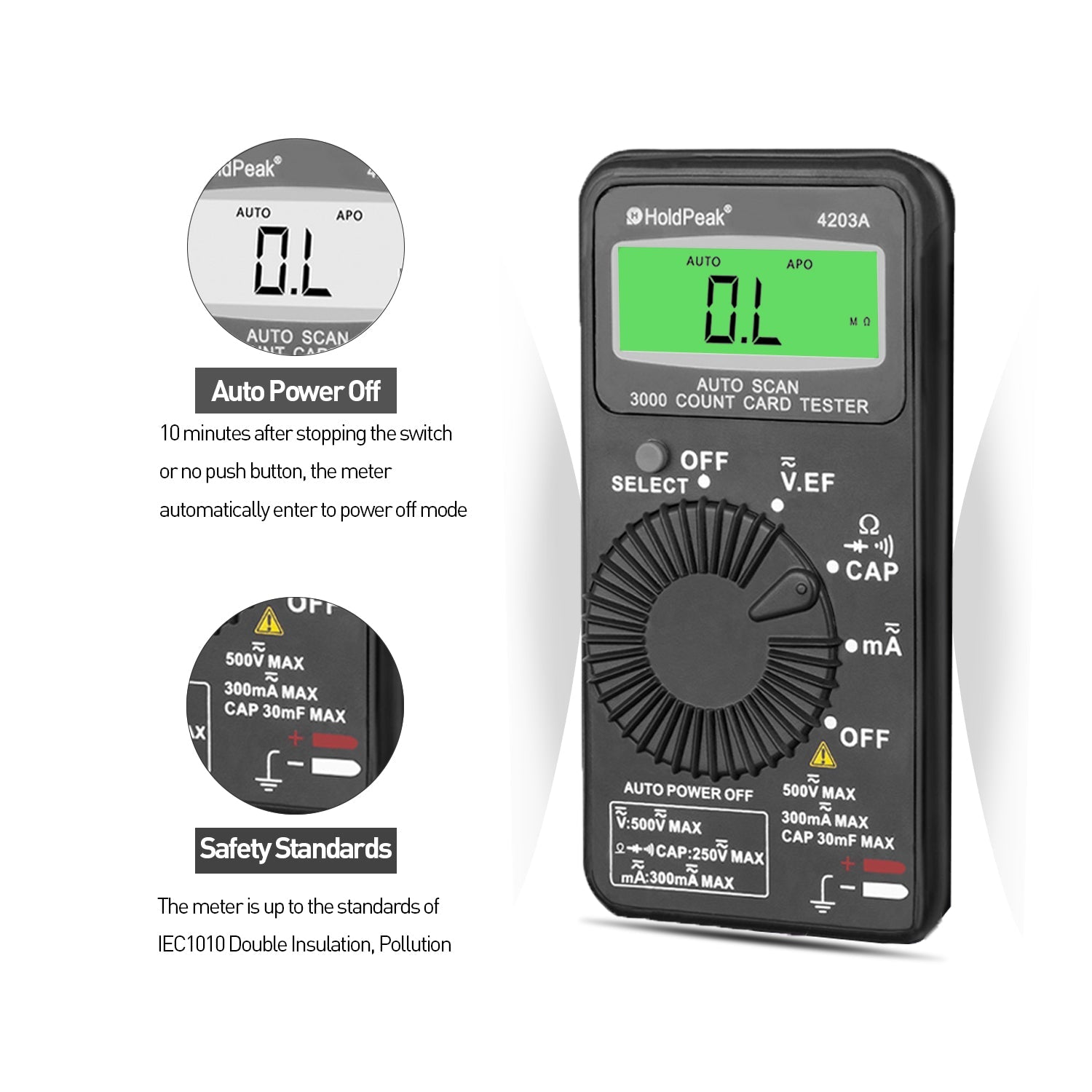

♦ Auto Power Off: 10 minutes after stopping the switch or no push button, the meter automatically.
SPECIFICATIONS
| Range | Accuracy | Resolution | |
| DC Voltage | 3V~500V | 1.0% of rdg+7digits | 1mV |
| AV Voltage | 3V~500V | 1.0% of rdg+10digits | 1mV |
| Resistance | 300Ω~30MΩ | 1.8% of rdg+18digits | 0.1Ω |
| Capacitance | 3nF~30mF | k5.0% of rdg+30digits | 1PF |
7 Days free refund, 15 Days free replace, 365 Days Warranty, Lifetime Tech-support.
